Home > Products > WIRE ROPE

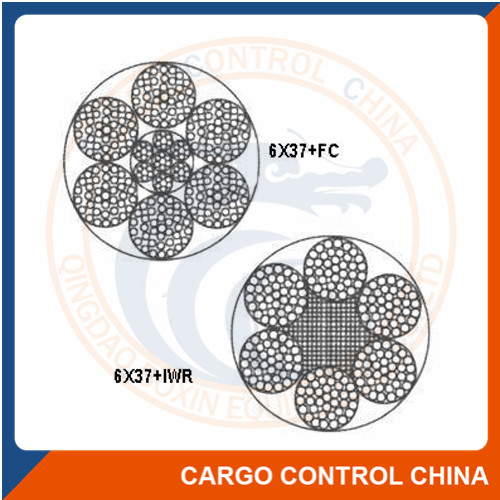

6X37+FC　　6X37+IWR
NOMINAL DIAMETER (MM)	APPROXIMATE WEIGHT (KG/100M)		(N/MM2) NOMINAL T/S
			1470		1570		1670		1770		1870
			(KN) MIN B/L
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
5	8.65	9.52	10.80	11.70	11.50	12.50	12.3	13.3	13.0	14.1	13.70	14.90
6	12.50	13.70	15.60	16.80	16.60	18.0	17.7	19.1	18.7	20.3	19.80	21.40
8	22.10	24.40	27.7	30.0	29.6	32.0	31.5	34.0	33.40	36.1	35.3	38.1
10	34.60	38.10	43.4	46.8	46.3	50.0	49.2	53.2	52.2	56.4	55.10	59.6
12	49.80	54.9	62.40	67.50	66.6	72.1	70.9	76.7	75.1	81.3	79.40	85.90
14	67.80	74.70	84.9	91.9	90.70	98.10	96.50	104.0	102.0	110.0	108.0	116.0
16	88.6	94.5	111.0	120.0	118.0	128.0	126.0	136.0	133.0	144.0	141.0	152.0
18	122.0	123.0	140.0	151.0	150.0	162.0	159.0	172.0	169.0	182.0	178.0	193.0
20	138.0	152.0	173.0	187.0	185.0	200.0	197.0	213.0	208.0	225.0	220.0	238
22	167.0	184.0	209	226	224	242	238	257	252	273	266	288
24	199.0	219.0	249	270	266	288	283	306	300	325	317	343
26	234.0	258.0	293.0	316.0	313.0	338.0	333.0	360.0	352.0	381.0	372.0	403.0
28	271.0	299.0	339.0	367.0	363.0	392.0	386.0	417.0	409	442	432	467
30	311	343	390	422	416	450	443	479	469	508	496	536
32	354	390	444	480	474	512	504	545	534	578	564	610
34	400	440	501	542	535	578	569	615	603	652	637	689
36	448	494	562	607	600	649	638	690	676	731	714	773
38	500	550	626	677	668	723	711	769	753	815	796	861
40	554	610	693	750	741	801	788	852	835	903	882	854
42	610	672	764	827	816	883	869	939	921	996	973	1050
44	670	738	839	907	896	969	953	1030	1010	1090	1060	1150
46	732	806	917	992	980	1050	1040	1120	1100	1190	1160	1260
48	797	878	999.0	1080	1060	1150	1130	1220	1200	1300	1270	1370
50	865	952	1080	1170	1150	1250	1230	1330	1300	1410	1370	1490
52	936	1030	1170	1260	1250	1350	1330	1440	1410	1520	1490	1610
54	1010	1110	1260	1360	1350	1460	1430	1550	1520	1640	1600	1730
56	1090	1190	1350	1470	1450	1570	1540	1670	1630	1770	1720	1870
58	1160	1280	1450	1570	1550	1680	1650	1790	1750	1890	1850	2000
60	1250	1370	1560	1680	1660	1800	1770	1910	1870	2030	1980	2140
62	1330	1460	1660	1800	1780	1920	1890	2040	2000	2170	2120	2290
64	1420	1560	1770	1920	1, 890	2050	2010	2180	2130	2310	2250	2440
66	1510	1660	1880	2040	201	2180	2140	2320	2270	2450	2400	2590
68	1600	1762	2005	2168	2141	2315	2278	2463	2414	2611	2551	2758
70	1965	1867	2125	2298	2270	2454	2413	2610	2558	2767	2703	2923
72	1794	1975	2248	2431	2401	2596	2554	2762	2707	2927	2860	3092
74	1895	2086	2375	2568	2536	3361	2698	2917	2860	3092	3021	3266
76	1998	2200	2505	2708	2675	2896	2845	3077	3016	3261	3186	3446
78	2105	2318	2838	3366	2818	3047	2997	3241	3177	3435	3356	3629
80	2214	2438	2775	3001	2964	3205	3153	3410	3342	3613	3530	3818
