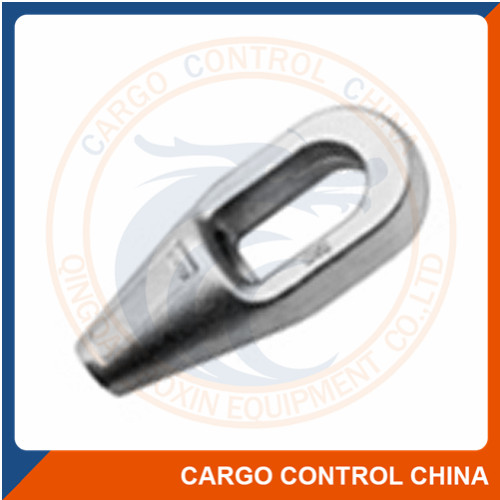

*FORGED STEEL SOCKETS THRU 1 1/2" , CAST ALLOY STEEL 1-5/8" THRU 4"
*SPELTER SOCKET TERMINATIONS HAVE AN EFFICIENCY RATING OF 100% , BASED ON THE CATALOG STRENGTH OF WIRE ROPE. RATINGS ARE BASED ON RECOMMENDED USE WITH 6*7,6*19 OR 6*37, IPS OR XIP,XXIP(EIP),RRL,FC,OR IWRC WIRE ROPE.
CLOSED GROOVED SOCKETS MEET THE PERFORMANCE REQUIREMENTS OF FEDERAL SPECIFICATION RR-S-550D,TYPE B, EXCEPT FOR THOSE PROVISIONS REQUIRED OF THE CONTRACTOR.
PART NO. | FOR SIZE(INCH) | WEIGHT | DIMENSIONE(IN) | |||||||||
A | B | C | D | F | G | H | J | K | L | |||
EB710104 | 1/4 | 0.50 | 4.50 | 0.50 | 1.50 | 0.88 | 0.38 | 0.69 | 1.56 | 2.25 | 0.50 | 1.75 |
EB710516 | 5/16-3/8 | 0.75 | 4.88 | 0.62 | 1.69 | 0.97 | 0.50 | 0.81 | 1.69 | 2.25 | 0.69 | 2.00 |
EB710716 | 7/16-1/2 | 1.50 | 5.44 | 0.69 | 2.00 | 1.16 | 0.56 | 0.94 | 1.88 | 2.50 | 0.88 | 2.25 |
EB710916 | 9/16-5/8 | 2.50 | 6.31 | 0.81 | 2.63 | 1.41 | 0.69 | 1.12 | 2.38 | 3.00 | 1.00 | 2.50 |
EB710304 | 3/4 | 4.25 | 7.56 | 1.06 | 3.00 | 1.66 | 0.81 | 1.25 | 2.75 | 3.56 | 1.25 | 3.00 |
EB710708 | 7/8 | 7.25 | 8.75 | 1.25 | 3.63 | 1.88 | 0.94 | 1.50 | 3.25 | 4.00 | 1.50 | 3.50 |
EB711000 | 1 | 10.50 | 9.88 | 1.38 | 4.13 | 2.30 | 1.13 | 1.75 | 3.75 | 4.44 | 1.75 | 4.00 |
EB711108 | 11/8 | 14.25 | 11.00 | 1.50 | 4.50 | 2.56 | 1.25 | 2.00 | 4.13 | 5.00 | 2.00 | 4.50 |
EB711104 | 11/4-13/8 | 19.75 | 12.12 | 1.63 | 5.30 | 2.81 | 1.50 | 2.25 | 4.75 | 5.50 | 2.25 | 5.00 |
EB711102 | 11/2 | 29.20 | 13.94 | 1.94 | 5.33 | 3.19 | 1.63 | 2.75 | 5.25 | 6.00 | 2.50 | 6.00 |
EB711508 | 15/8 | 36.0 | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 3.00 | 5.50 | 6.50 | 2.75 | 6.50 |
EB711304 | 13/4-17/8 | 57.25 | 17.25 | 2.19 | 6.75 | 3.75 | 2.00 | 3.13 | 6.38 | 7.50 | 3.00 | 7.56 |
EB712000 | 2-21/8 | 79.00 | 19.50 | 2.44 | 7.63 | 4.38 | 2.25 | 3.75 | 7.38 | 8.50 | 3.25 | 8.56 |
EB712104 | 21/4-23/8 | 105.00 | 21.31 | 2.63 | 8.50 | 5.00 | 2.50 | 4.00 | 8.25 | 9.00 | 3.63 | 9.50 |
EB712102 | 21/2-25/8 | 140.00 | 23.50 | 3.12 | 9.50 | 5.50 | 2.88 | 4.50 | 9.25 | 9.75 | 4.00 | 10.62 |
EB712304 | 23/4-27/8 | 220.00 | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 4.88 | 10.19 | 11.00 | 4.88 | 11.25 |
EB713000 | 3-31/8 | 276.00 | 27.00 | 3.25 | 11.50 | 6.75 | 3.38 | 5.25 | 11.50 | 12.00 | 5.25 | 11.75 |
EB713104 | 31/4-33/8 | 313.00 | 29.25 | 4.00 | 12.25 | 7.25 | 3.62 | 5.75 | 12.25 | 13.00 | 5.75 | 12.25 |
EB713102 | 31/2-35/8 | 400.00 | 31.00 | 4.00 | 13.00 | 7.75 | 3.88 | 6.50 | 13.00 | 14.00 | 6.25 | 13.00 |
EB713304 | 33/4-4 | 542.00 | 33.25 | 4.25 | 14.25 | 8.50 | 4.25 | 7.25 | 14.25 | 15.00 | 7.00 | 14.00 |
