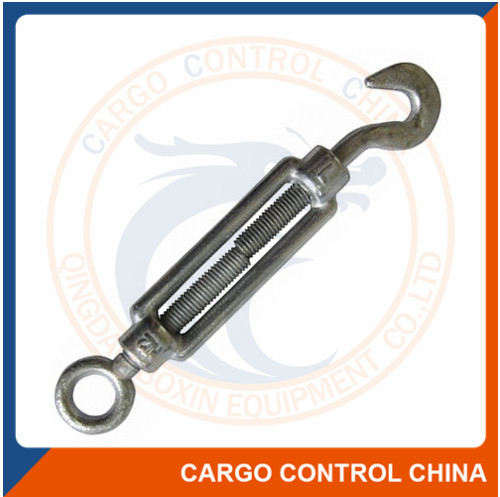

DIN 1480 TURNBUCKLE BODY
EYE AND HOOK TYPE
DIMENSION | PERMISSIBLE LOAD |
| ||||||||
D | 11 | M | 12 | B | DI | DA | I | |||
MM(INCH) | ,KG | N | KG/100PCS | MM | MM | MM | MM | MM | MM | MM |
M6 | 230 | 2250 | 7.8 | 110 | 10 | 60 | 53 | 10 | 20 | 4.5 |
M8 | 418 | 4100 | 14.8 | 110 | 14 | 60 | 55 | 12 | 26 | 6.5 |
M10 | 663 | 6500 | 29.4 | 125 | 20 | 65 | 60 | 14 | 30.5 | 8 |
M12 | 948 | 9300 | 36.3 | 125 | 21 | 75 | 70 | 18 | 37.5 | 10.5 |
M16 | 1804 | 17700 | 91 | 170 | 27 | 100 | 90 | 22 | 48 | 13 |
M20 | 2752 | 27000 | 156 | 200 | 34 | 115 | 100 | 25 | 51 | 20 |
M24 | 3996 | 39200 | 325 | 255 | 39 | 140 | 130 | 28 | 66 | 27 |
M30 | 6371 | 62500 | 415 | 255 | 45 | 145 | 130 | 35 | 83 | 31 |
11/2 | 6585 | 64600 | 595 | 295 | 55 | 160 | 150 | 36.5 | 88 | 33 |
M36 | 9276 | 91000 | 745 | 295 | 55 | 160 | 150 | 44 | 104 | 40 |
11/2" | 9572 | 93900 | 1076 | 330 | 63 | 185 | 170 | 42 | 104 | 39 |
