Home > Products > SHACKLE

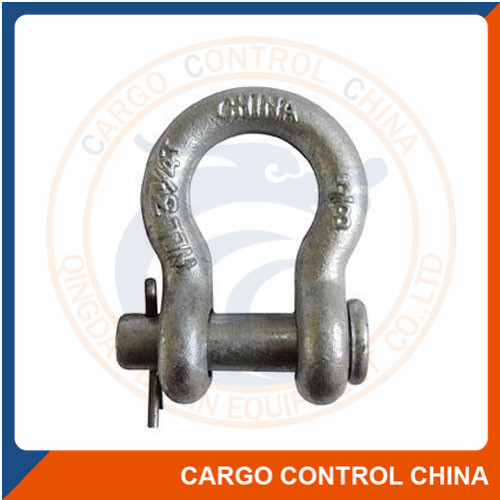

G-213 S-213 ROUND PIN
ROUND PIN ANCHOR SHACKLES MEET THE REQUIREMENTS OF FEDERAL SPECIFICATION RR-C-271D TYPE IVA,GRADE A,CLASS2.

NOMINAL SIZE (IN.)	WORKING LOAD LIMIT (TONS)	DIMENSIONS (IN.)												WEIGHT EACH (LBS.)
NOMINAL SIZE (IN.)	WORKING LOAD LIMIT (TONS)	A	B	C	D	E	F	G	H	L	M	N	P	G-209 S-209	G-213 S-213
3/16	1/3	0.38	0.25	0.88	0.19	0.60	0.56	0.98	1.47	0.16	1.12	--	0.19	0.05	--
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	0.19	1.38	1.34	0.25	0.12	0.13
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	0.22	1.66	1.59	0.31	0.19	0.17
3/8	L	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	0.25	2.03	1.86	0.38	0.31	0.25
7/16	L1/2	0.75	0.50	1.69	0.44	1.16	1.06	2.03	2.91	0.31	2.38	2.13	0.44	0.38	0.38
1/2	2	0.81	0.63	1.88	0.50	1.31	1.19	2.31	3.28	0.38	2.69	2.38	0.50	0.63	0.70
5/8	31/4	1.06	0.75	2.38	0.63	1.69	1.50	2.94	4.19	0.44	3.34	2.91	0.69	1.38	1.50
3/4	43/4	1.25	0.88	2.81	0.75	2.00	1.81	3.50	4.97	0.50	3.97	3.44	0.81	2.25	2.32
7/8	61/2	1.44	1.00	3.31	0.88	2.28	2.09	4.03	5.83	0.50	4.50	3.81	0.97	3.38	3.40
L	81/2	1.69	1.13	3.75	1.00	2.69	2.38	4.69	6.56	0.56	5.07	4.53	1.06	5.32	5.00
L1/8	91/2	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	0.63	5.59	5.13	1.25	6.81	6.97
L1/4	12	2.03	1.38	4.69	1.29	3.25	3.00	5.75	8.25	0.69	6.16	5.50	1.38	9.50	9.75
L3/8	131/2	2.25	1.50	5.25	1.42	3.63	3.31	6.38	9.16	0.75	6.84	6.13	1.50	13.25	13.25
L1/2	17	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10.00	0.81	7.35	6.50	1.62	17.20	17.25
L3/4	25	2.88	2.00	7.00	1.84	5.00	4.19	8.86	12.34	1.00	9.08	7.75	2.25	30.38	29.46
2	35	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	1.22	10.34	8.75	2.40	45.00	45.75
21/2	55	4.13	2.75	10.50	2.71	7.25	5.69	12.87	17.84	1.38	13.00	--	3.13	85.75
