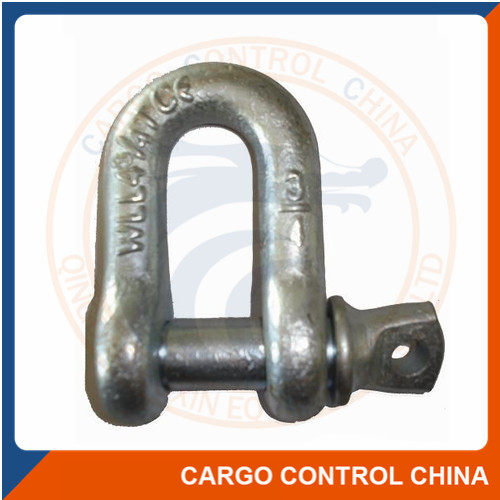

EUROPEAN TYPE LARGE DEE SHACKLES
SAME SIZE DIAMETER PIN WITH BODY
SWL | D | D | A | C | B | WEIGHT | |
KG | MM | MM | MM | MM | MM | KG | |
80 | 5 | 5 | 10 | 19 | 11 | 1.9 | |
100 | 6 | 6 | 13 | 25 | 14 | 3.4 | |
200 | 8 | 8 | 16 | 32 | 18 | 7 | |
320 | 10 | 10 | 19 | 38 | 20 | 13 | |
520 | 12 | 12 | 25 | 51 | 26 | 24 | |
800 | 16 | 16 | 32 | 64 | 33 | 50 | |
1100 | 20 | 20 | 38 | 76 | 40 | 80 | |
1500 | 22 | 22 | 44 | 89 | 50 | 130 | |
2100 | 25 | 25 | 51 | 100 | 57 | 200 | |
3000 | 28 | 28 | 57 | 115 | 68 | 300 | |
3500 | 32 | 32 | 64 | 127 | 73 | 430 | |
5000 | 38 | 38 | 76 | 152 | 85 | 675 | |
7000 | 45 | 45 | 90 | 180 | 96 | 1250 | |
8000 | 50 | 50 | 102 | 200 | 108 | 1750 |
