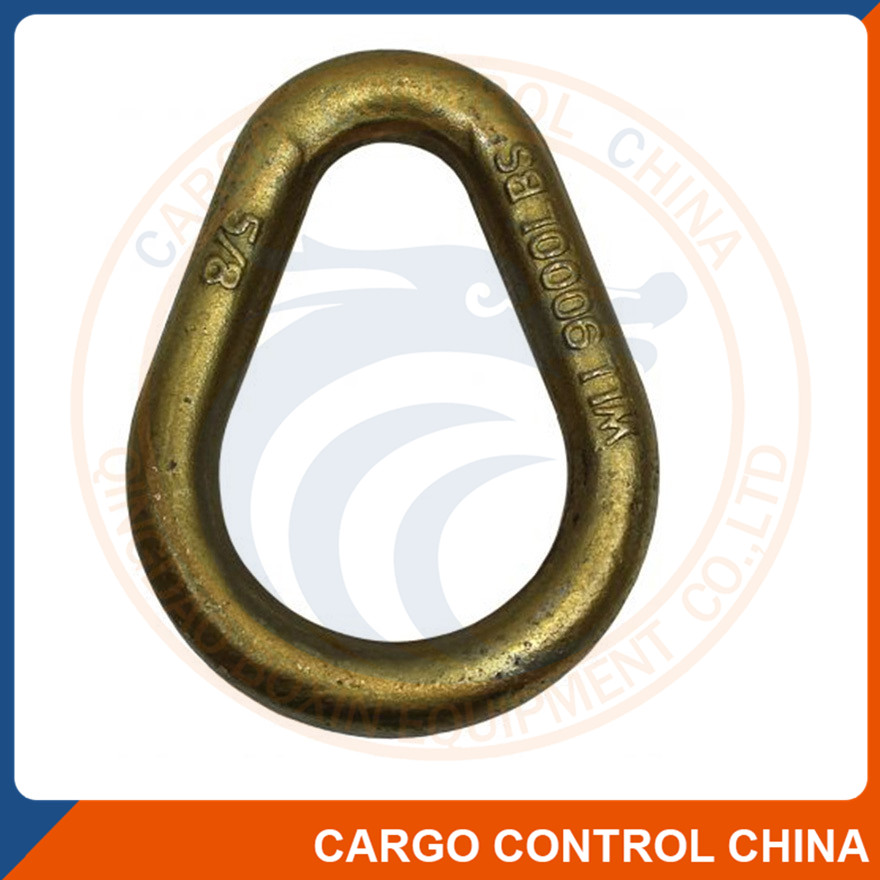

EBTB048(GL20210705)
GOLD COLOR
SIZE (A) (IN.) | WORKING LOAD LIMIT | WEIGHT EACH (LBS) | DIMENSIONS(IN) | ||||
CARBON (LBS) | ALLOY (LBS) | ALLOY (T) | B | C | F | ||
1/2 | 2900 | 7000 | 3.15 | 0.55 | 3.00 | 2.00 | 1.00 |
5/8 | 4200 | 9000 | 4.09 | 1.10 | 3.75 | 2.50 | 1.25 |
3/4 | 6000 | 12300 | 5.59 | 1.76 | 4.50 | 3.00 | 1.50 |
7/8 | 8300 | 15000 | 6.81 | 2.82 | 5.25 | 3.50 | 1.75 |
1 | 10800 | 24360 | 11.0 | 4.22 | 6.00 | 4.00 | 2.00 |
1-1/8 | 13800 | 30600 | 13.9 | 6.25 | 6.50 | 4.50 | 2.25 |
1-1/4 | 16750 | 36000 | 16.4 | 8.25 | 7.75 | 5.00 | 2.5 |
1-3/8 | 20500 | 43000 | 19.5 | 11.25 | 8.25 | 5.50 | 2.75 |
1-1/2 | - | 54300 | 24.7 | 14.25 | 9.00 | 6.00 | 3.00 |
1-5/8 | - | 62600 | 28.4 | 18.5 | 9.75 | 6.50 | 3.25 |
1-3/4 | - | 84900 | 38.6 | 22.5 | 10.50 | 7.00 | 3.5 |
1-7/8 | - | 95800 | 43.5 | 29.00 | 11.25 | 7.50 | 3.75 |
2 | - | 102600 | 46.6 | 34.00 | 12.00 | 8.00 | 4.00 |
++2-1/4 | - | 143100 | 65.0 | 48.00 | 13.50 | 9.00 | 4.50 |
++2-1/2 | - | 147300 | 66.9 | 66.00 | 15.00 | 10.00 | 5.00 |
++2-3/4 | - | 216900 | 98.6 | 88.00 | 16.50 | 11.00 | 5.50 |
++3 | - | 228000 | 103 | 114.00 | 18.00 | 12.00 | 6.00 |
++3-1/4 | - | 262000 | 119 | 146.00 | 19.50 | 13.00 | 6.50 |
++3-1/2 | - | 279000 | 126 | 181.00 | 21.00 | 14.00 | 7.00 |
++4 | - | 373000 | 169 | 271.00 | 24.00 | 16.00 | 8.00 |
